系統簡介

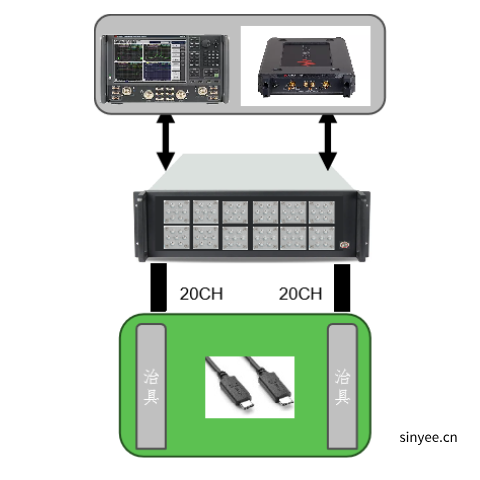

LET-9000U USB Type-C電纜組件符合性測試是LETAK開發的基本USB協會要求的完整測試系統，可以快速、準確的測試USB電纜的全面指標。

Measurement Parameters

◆  D+/D- Impedance

◆  D+/D- Propagation Delay

◆  D+/D- Intra-pair Skew

◆  Differential Impedance

◆  [Low Speed Signal] Characteristic Impedance

◆  D+/D- Pair Attenuation

◆  ILfitatNq, IMR, IXT, IRL, Differential to Common Mode Conversion

◆  Shielding Effectiveness

◆  Insertion Loss

◆  Return Loss

◆  NEXT/FEXT between Gen2 Pairs

◆  NEXT/FEXT between D+/D- and Gen2 Pairs

◆  [Low Speed Signal] Crosstalk, VBUS Loop L/C, Coupling Factor
